Heating Bath (Agitator), BW-05H/BW-10H/BW-20H
PriceFrom HK$4,720.80
Performance
- Temperature range from ambient +5℃ to 100℃.
- Microprocessor PID control / Automatic tuning / Calibration.
- Powerful circulation system using our patented agitator.
Safety
- Two independently controlled reservoirs merged into a single unit for space saving. (for Dual models)

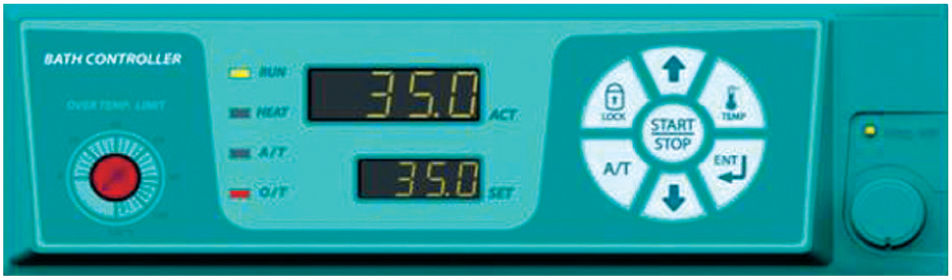

- Digital LED displays with quick adjustable dial knob. (0.1℃resolution)
- Low-profile design with sloped control panel for easier access and better safety.
Convenience
- Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
- Complete safety protection system with warning alarms.
- Over-temperature, over-current protection. - Keypad lock function prevents accidental changes during operation.
Specification
| Digital Model | BW-05H | BW-10H | BW-20H |
| Bath volume (L / cu ft) | 3.5 / 0.1 | 11.5 / 0.4 | 20 / 0.7 |
| Working temperature range (℃ / ℉) | Amb. +5 to 100 / Amb. +9 to 212 | Amb. +5 to 100 / Amb. +9 to 212 | Amb. +5 to 100 / Amb. +9 to 212 |
| Temperature stability at 50℃ (±℃ / ℉) | ±0.1 / 0.18 | ±0.1 / 0.18 | ±0.1 / 0.18 |
| Heat up time to 70℃ (min) 1) (±℃ / ℉) | 25 | 45 | 50 |
| Bath opening / depth (W×L, D) (mm / inch) | 240×136, 150/ 9.4×5.4, 5.9 | 300×240, 200/ 11.8×9.5, 7.9 | 498×300, 200/ 19.6×11.8, 7.9 |
| Exterior(W×L×H) (mm / inch) | 307×216×266 / 12.1×8.5×10.5 | 364×316×318 / 14.3×14.4×12.5 | 564×372×318 / 22.2×14.6×12.5 |
| Net weight (kg / lbs) | 6.5 / 14.3 | 9.5 / 21 | 15.5 / 34.2 |
| Electrical requirements (230V, 50 / 60Hz) | 3.0A | 4.3A | 8.7A |
| Cat. No. | AAH45115K | AAH45125K | AAH45135K |
※ The lowest temperature that can be controlled depends on changes in room temperature and sample temperature. Therefore, please contact the distributor of our products before purchasing for technical consultation.
※ Technical data (according to DIN 12876).
※ Bath fluid : Water, Using agitator.
